Our systems for floating docks are composed of modular blocks in high density plastic, weather resistant, light, high or low temperatures (-55 ° to + 75 °).
There are three systems that are adapted to a large range of applications:
1) The system CUBE DOCK, composed of modular cubes 50x50x40cm
2) The ROTO DOCK, consisting of modules ranging from 100x300 to a maximum of 200x300cm, made entirely of high density polyethylene
3) The POLY DOCK system, with floating plastic and walking surface which can be either wood or faux wood slats.
EditRegion4
CUBEDOCKs are single modular units made of high density polyethylene. The units can be interlocked to form any floating structure that is desired. The dimension are 50cm by 50 cm by 40 cm. CUBEDOCKs are durable, maintenance free, convenient, safe and enviromentally friendly.
INDIGO. manufacturers floating docks that are safe, non-polluting, weatherproof, unsinkable, sturdy, maintenance-free, and economical
WHAT YOU GET BENEFITS:
CONVENIENT
Easy to assemble
Lightweight and portable
Add-on capability
No additional surface required
DURABLE
Will not rot, splinter or corrode
Blow molded, seamless construction
High impact and puncture resistant
High load capacity - 220 lbs (100 kg) per unit
Weather, chemical, fire and UV resistant
MAINTENANCE FREE
No upkeep required
CUBEDOCKs are made of the highest quality plastic available
Life expectancy exceeds 25 years
ENVIROMENTALLY FRIENDLY
Non-polluting and recyclable
No leaching or disintegration
Maintains structural integrity
SAFE
Non-skid surface
No sharp edges
No hazardous hardware
Stable
Where you can use our CUBE DOCKs Systems:

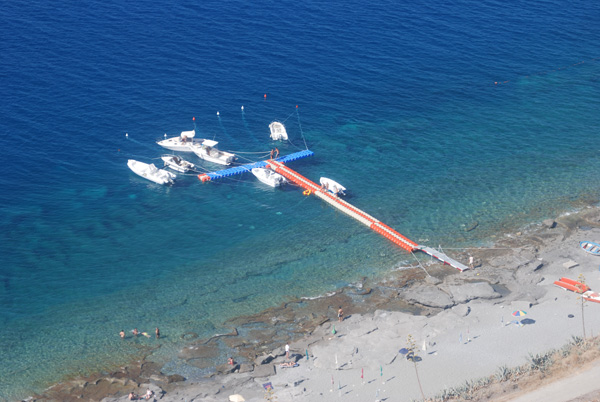

Beside personel use, Our CUBE DOCKs Systems can be use in miltary, hotels and resorts, fish farms, water sports, pontoons....
SPECIFICATIONS
Applications:
Lakes,Bays,Marinas, rivers, working platforms
Hammadde:
Polyethylene
Sizes:

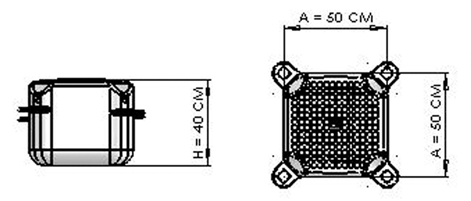

50 cm. x 50cm. x40cm
Colour:
Standart color is Beige and grey but we can make any color according to customers' requirements
Floating CApacity:
350 kg / m2
Type:
Moduler floating system
Installation:
Fast and easy. Can be modified anytime and easily .
Connection:
Sections are connected to each other by PE connecting pin and edge fasteners.
Anchoring:
There are several possibilities to anchor the platforms and walkway. Main anchoring systems are deathweigths and pipes.
Projects Costs :
Costs are calculated on Project base and based on every pieces and installation services.
We provide all the items that are needed for the Project.

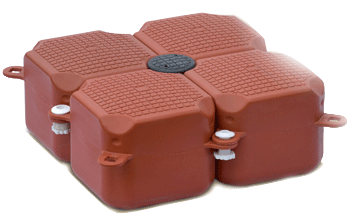

In CUBEDOCK Modular floating platforms, we have one connecting pin which keeps 4 cubes together. With this locking systems you can almost install and resinstall platforms in any shape in any size on the water. You can have 1m2 surface by connecting 4 cubes. 4 cubes have appx. 350 kg floating capacity. This platforms and walkways will serve you for years. This product line has accessories such as cleats,bumpers, ladder,handrails, etc..
With edge fasteners our Sunnydock range of floating docks are very strong on open seas.
All our products are produced mono block. There are not any addition part or any rivet
Product code
Product Name
Floating Capacity (kg)
LENGHT
(cm)
WIDTH
(cm)
HIGH (cm)
S-01
SD-50*50 Floating Dock
100
50
50
40
There is (+/-) 3% tolerance in body dimensions UV stabilization is included in our raw material , so it is strong enough against the sun rays.
